Tarot 12S distribution board TL2996

Name: Tarot 12S distribution board TL2996
SKU: 9598
Availability: InStock

Power distribution management module 12S power supply is composed of two 6S batteries in series,so two batteries need to be plugged in to provide power supply.
If only 6S power supply is required,only the leftmost red positive pole and the rightmost black negative pole are connected,and the two red and black wires in the middle are short-circuited series connection points,no need to connect

Add to wishlist

Compare

20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Model TL2996

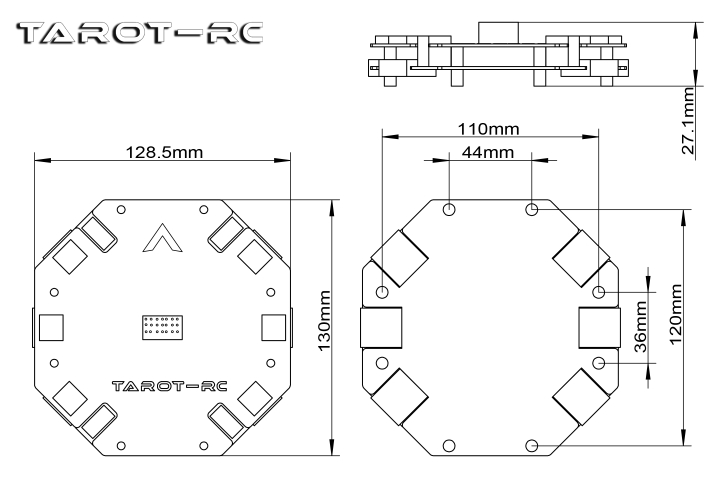

Dimensions 130 × 128.5× 27.1 MM
Support four-axis / six-axis two kinds of drone installation use
Support 6S/12S voltage input

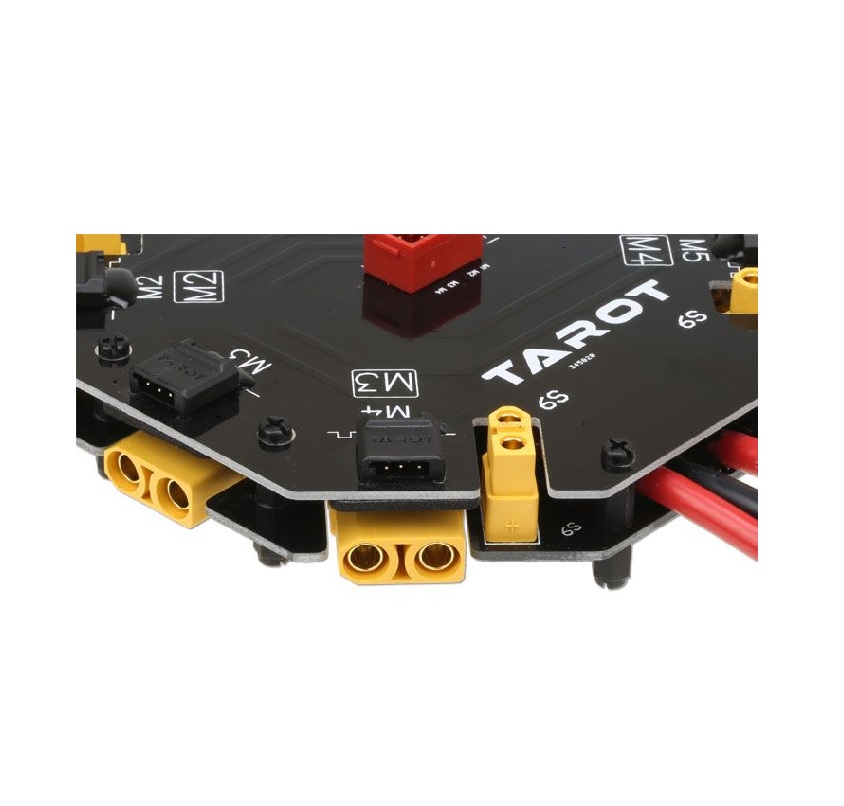

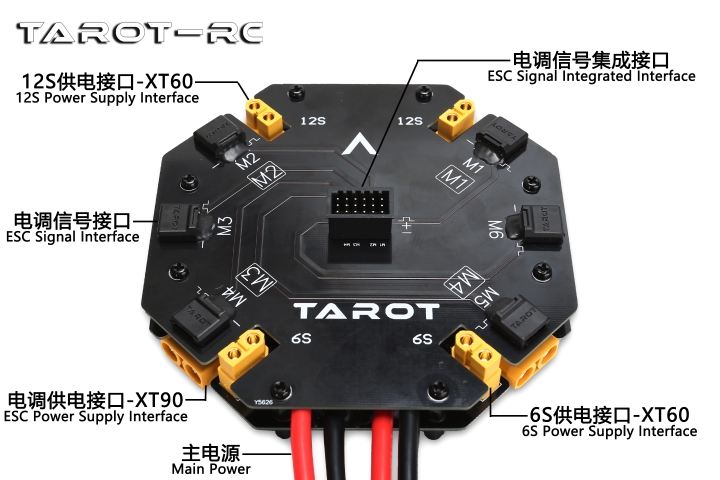

The new XT90 plug is used to support two 6S batteries in a series. The new XT90 plug is used to support two 6S batteries in series, and a 10AWG power cord is reserved. Reserve two 6S power supply interfaces / two 12S power supply interfaces. The brushless ESC signal socket uses a customed anti-mis-insertion design.

The customized ESC red signal hub also prevents miss-insertion design to guide accurate wiring to prevent the vibration of the UAV from affecting the reliability of the contacts. The overall details show the quality and ingenuity. Remote Control Peripherals/Devices:12S 480A. Upgrade Parts/Accessories: High Current Distribution Board.
