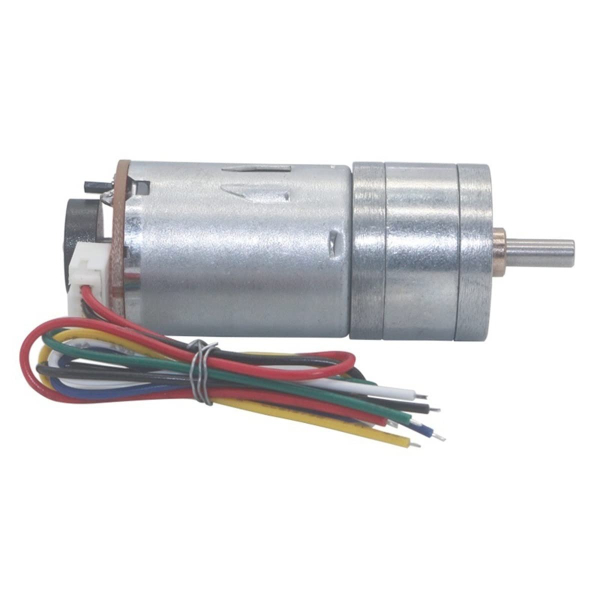

JGA25-370 / 25GA370 Micro Metal Gear Motor

Name: JGA25-370 / 25GA370 Micro Metal Gear Motor
SKU: 11434
Availability: InStock

Features:
– All the gear of metal mechanismWear resistance, strong resistance to torsion, smooth transmission, compact structure.– D-shaped double axisD-shaped double shaft, excellent thermal conductivity.– Hall D-type encoder, 3-layer high-density molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers.– Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.

Package Included:
1 Pcs X 25GA-370 24V 26RPM DC Reducer Gear Motor with Encoder

Add to wishlist

Compare

19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Product Name: 25GA-370 24V 26RPM DC Reducer Gear Motor with Encoder
It has a sturdy construction.
High torque at very low Current Consumptions
Shaft equips metal bushes for long life.
Metal Gears for High performance
It comes with High-QualityThis is the Red variant of the 25GA-370 24V 26RPM DC Reducer Gear Motor with Encoder in 25GA motor. Available at ₹607.70 (₹515.00 + GST) with free shipping across India.This is a DC Mini Metal Reduction Motor, ideal for DIY engine, electric lock, or robot model projects. It is made of metal material, with excellent durability and fine workmanship. The motor speed can only be reduced, not increased.
Specifications:
Material: Metal
Voltage: DC 24V
Power: 3W
Speed: 26 RPM
Rotate In Both Two Sides: Yes

application-

* This motor is versatile and can power various devices, such as:
– Smart self-balancing vehicles with two wheels
– Smart home appliances that can automate tasks
– Robots that can perform complex actions
– Camera stabilizers that can capture smooth videos
– Electric paper-cutting machines that can create intricate designs

Wiring:Red: Motor power + positive (change can control motor forward and reverse)Black: Code power – negative (positive and negative can not be connected incorrectly 3.3-5V)Yellow: Signal feedback (11 signals from the motor)Green: Signal feedback (11 signals from the motor)Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V)White: Motor power – negative (change can control motor forward and reverse)
