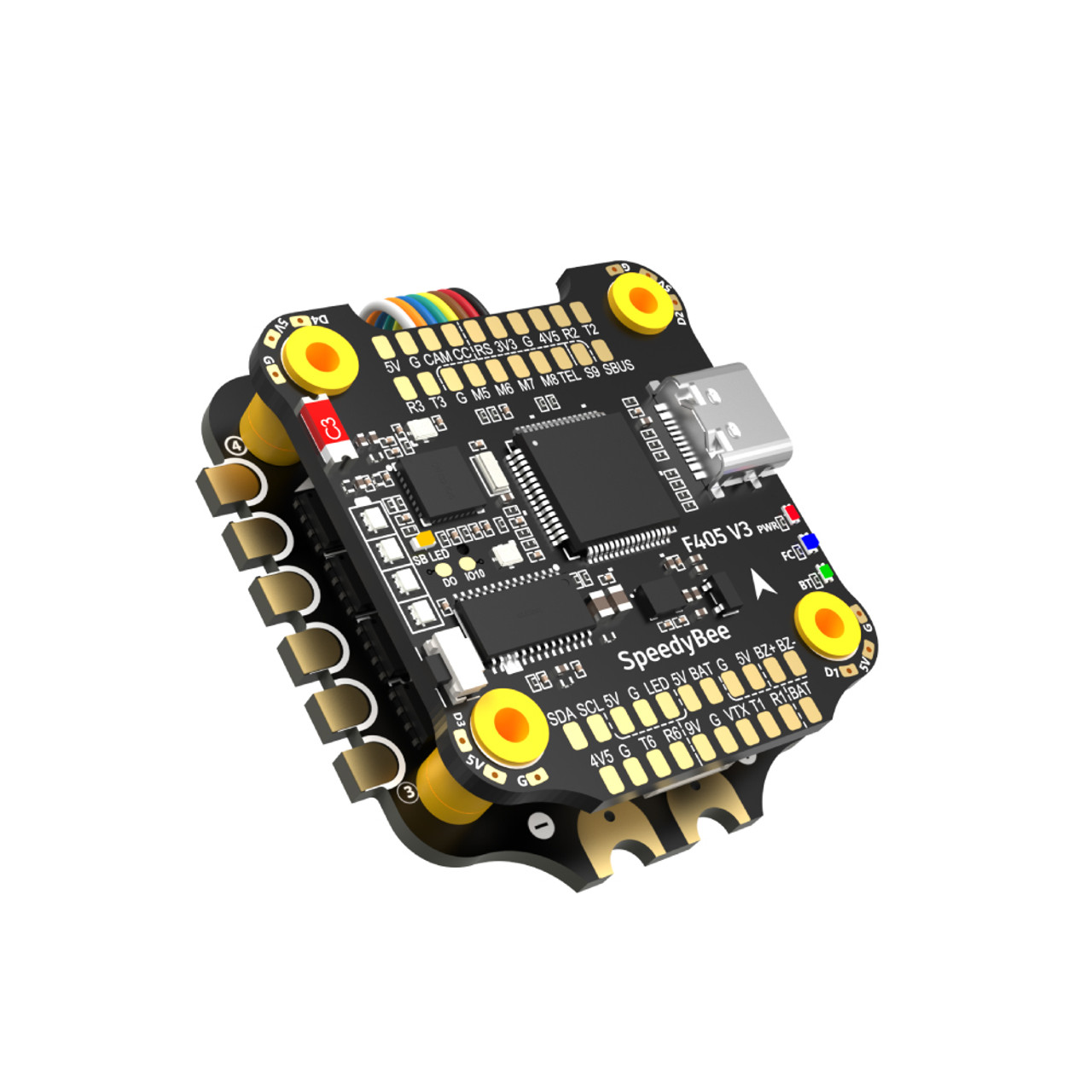

SpeedyBee SB-F4V3-50-STACK

Name: SpeedyBee SB-F4V3-50-STACK
SKU: 9175
Availability: InStock

The SpeedyBee SB-F4V3-50-STACK is a high-performance FPV (First-Person View) drone flight controller stack, specifically designed for analog and digital FPV builds. It combines a flight controller (FC) and a 4-in-1 ESC (Electronic Speed Controller) into a single, compact unit, offering a streamlined solution for drone enthusiasts.

Add to wishlist

Compare

19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Key Features

Flight Controller (FC):
- MCU: STM32F405 (more powerful than STM32F411)
- Gyroscope: BMI270
- OSD Chip: AT7456E
- Barometer: Built-in
- USB Port: Type-C
- Bluetooth: Built-in for wireless configuration via the SpeedyBee app
- Blackbox: Supports up to 4GB SD card for flight logs
- LED Strips: 4 groups of LED strip pads
- DJI Connector: Dedicated plug for DJI Air Unit
- BECs: 9V 2A and 5V 2A individual BECs
- UARTs: 4 UARTs for receiver, VTX, camera, and GPS
- GPS Power: Can be powered via USB, eliminating the need for a batterESC (Electronic Speed Controller):
- Type: 4-in-1 ESC
- Current Rating: 50A continuous
- Capacitors: Includes Japan-made TDK SMT capacitors and an external 1500µF low ESR capacitor for stable performance
- Protection: Equipped with a TVS protective diode
