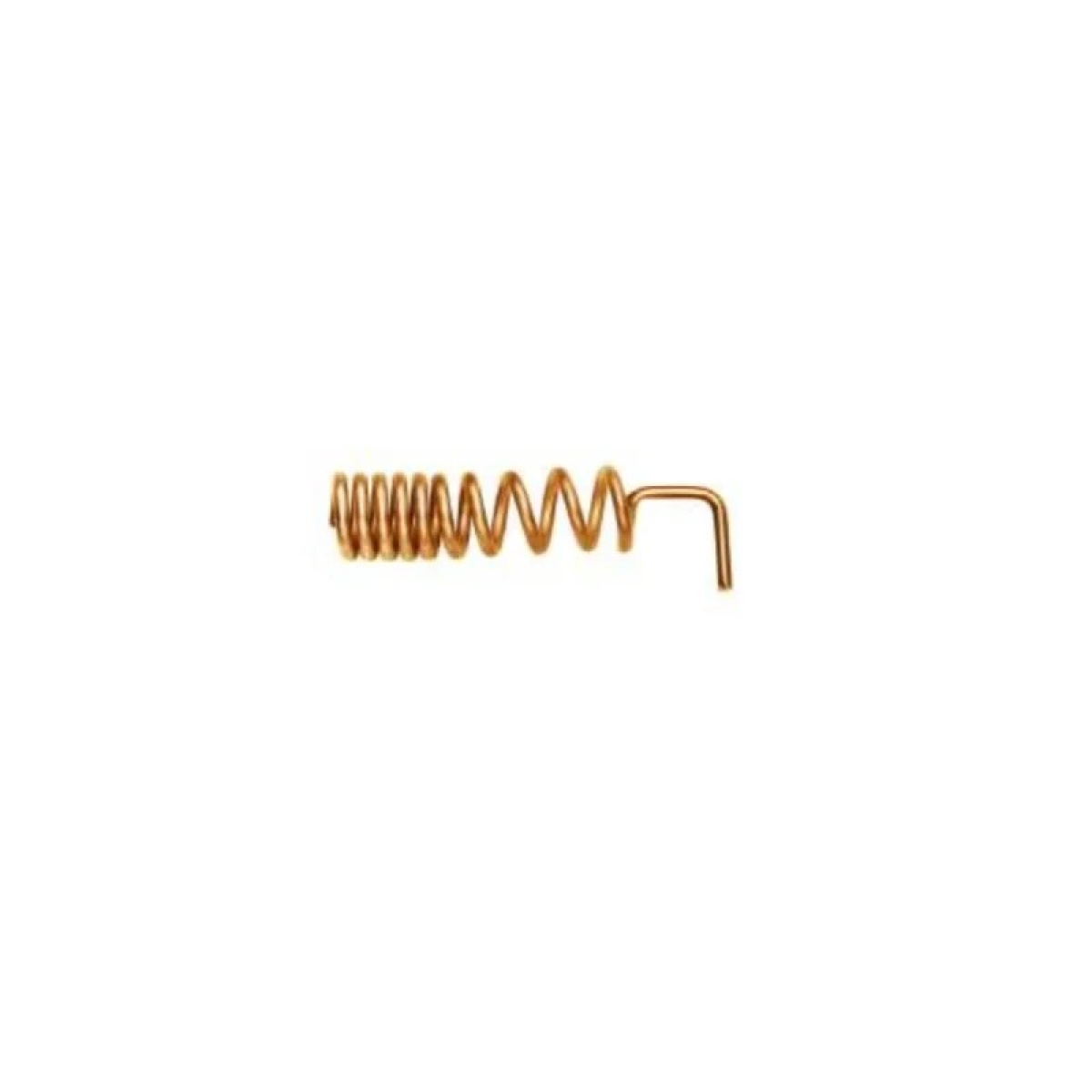

LWC-GSM-HELIX-RA-01 Dual Band Helix Antenna

A helical antenna is an antenna consisting of one or more conducting wires wound in the form of a helix. A helical antenna made of one helical wire, it has been widely used in telecommunication to communicate. This antenna has a frequency range of  824 – 960 MHz & 1710 – 2170 MHz with a gain of 1 dBi depending upon the PCB ground plane. One of the main reasons to use a helix antenna is its low cost and compact size.

Add to wishlist
Compare
13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Compact Size.
  2. Low Cost.
  3. Right Angle version available on request
  4. Tin and Nickel plated for corrosion-free
  5. Antennas with a rubber sleeve to protect from sparks
Additional information
Frequency (MHz)

824 – 960 & 1710 – 2170
VSWR

<2.2
Operating Temperature Range (°C):

-20 TO 60
