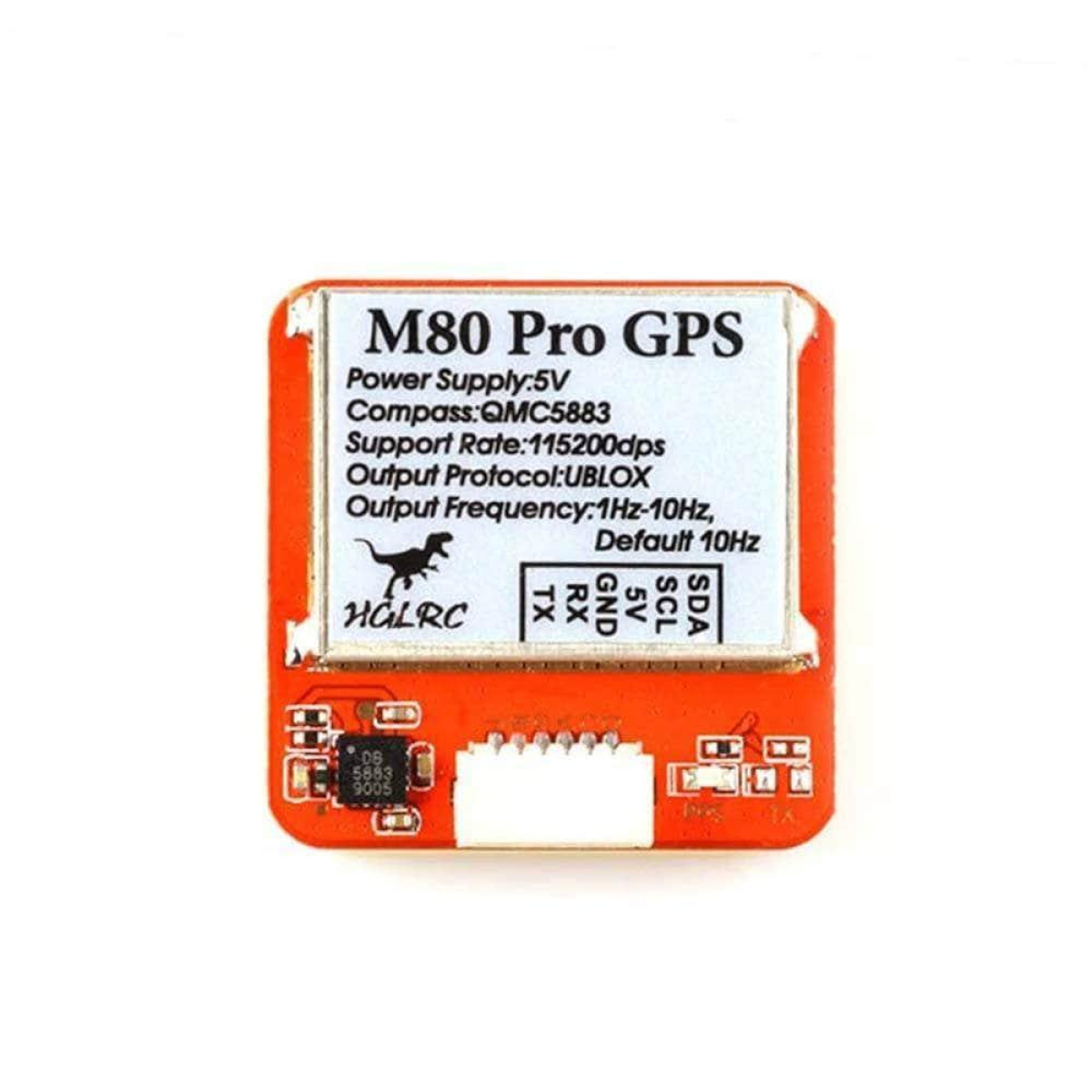

HGLRC M80 Pro GPS Module

Key Specifications

• Chipset: M8030

• Compass: QMC5883

• Power Supply: 5V

• Antenna: Ceramic

• Supported GNSS: GPS, GLONASS, GALILEO, QZSS, SBAS, BDS

• Channels: 72 searching channels

• Output Protocol: UBLOX

• Output Frequency: 1Hz–10Hz (default 10Hz)

• Speed Precision: 0.05 m/s

• Horizontal Positioning Accuracy: 2D ACC 1.5–2.5m (in open sky)

• Receiving Sensitivity: Tracking: –162 dBm, Capture: –160 dBm

• Dynamic Characteristics:

  • Max Height: 50,000 m

  • Max Speed: 500 m/s

  • Max Acceleration: 4G

• Operating Temperature: –40°C to +85°C

• Storage Temperature: –40°C to +105°C

• Dimensions: 25 mm × 25 mm × 8.3 mm

• Weight: 12.5 g
