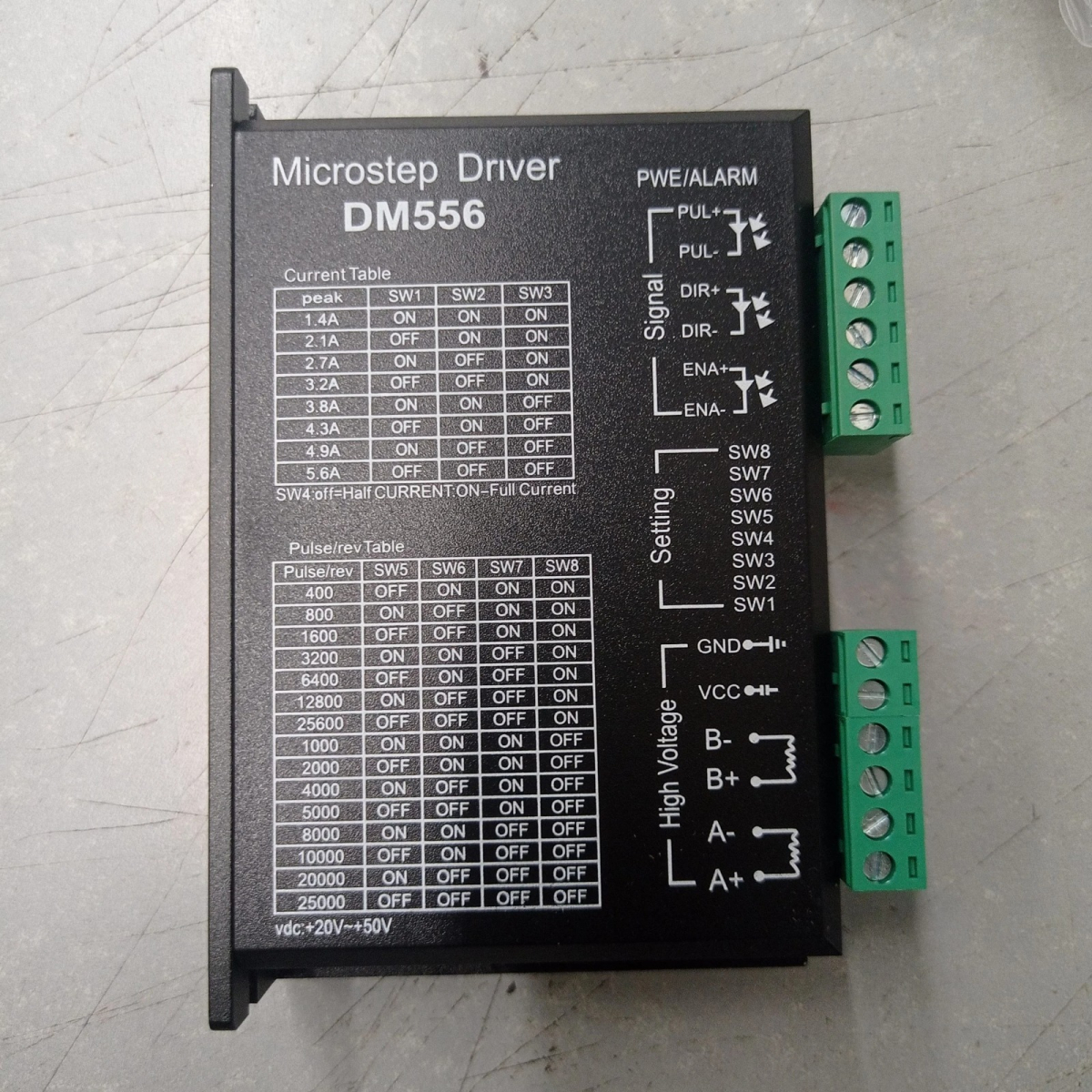

DM556 Digital Stepper Motor Driver for CNC Drivers Controller

The advantage of using the DM556 Stepper Motor Driver is to control the speed and position of the stepper motor. These kinds of drivers can be used for a small range of stepper motors. Using these kinds of drivers one can minimize the code and connections. In this driver, a new feature has been added where we can set the current Mode.SW4 is used for this purpose. OFF meaning that the standstill current is set to be half of the selected dynamic current, and ON meaning that the standstill current is set to be the same as the selected dynamic
current.

Add to wishlist
Compare
20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1.  Maximum current: 7.2A, resolution: 0.1A
  2.  Impulse response frequency: 200KHz
  3.  DC power supply
  4.  The input voltage range: 24~80VDC or AC both OK;
  5.  Power supply is greater than 200W. Recommend 48VDC or 48V AC
  6.  Operating Temperature: -10℃~45℃
Additional information
Maximum current

7.2 A
Subdivision Range

400~25600ppr
Impulse Response Frequency

200KHz
The input voltage range

24~80VDC or AC both OK
